Rhodes Manufacturing provides a full range of Services. Need steps, ladders or walkways? Trade-in or repair of your leaking tank? We are your one stop shop.
Our fleet of tractors, trailers, winch trucks, track-hoe, dozer and 20-ton crane, combined with our experienced and highly skilled operators will make setting your tanks a breeze. We also provide turnkey services when jobs require start-to-finish project management and construction.
For quality tanks and service you can rely on, give us a call. We offer:
- New & Used Tank Sales
- Tank Repair

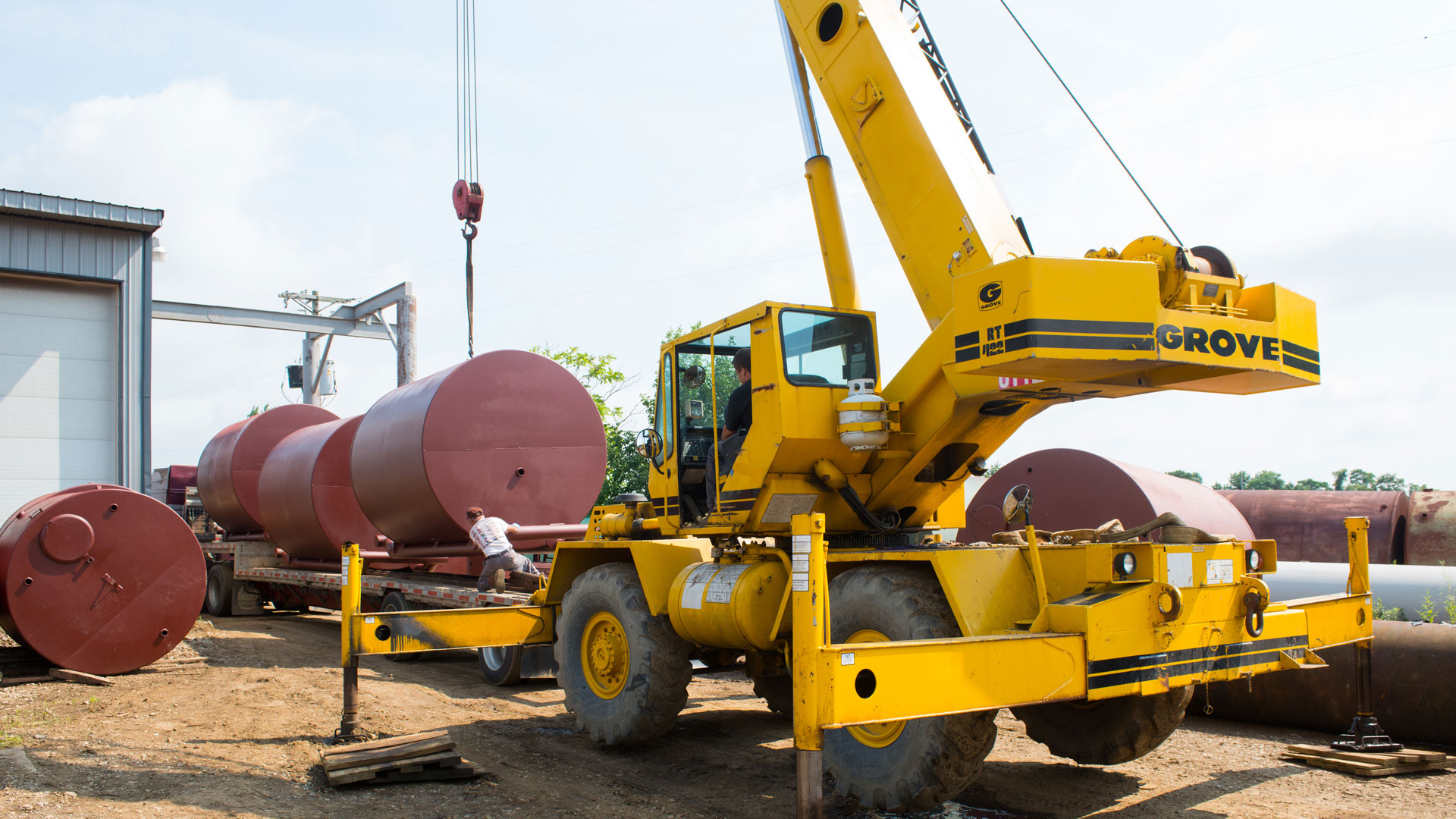

- Tank Hauling & Crane Service
- Tank Removal
- Steps, Ladders, & Walk-ways
- Custom Tank Fabrication
- Above Ground Carbon Steel Tanks
- Plug & Abandonment Services
- Complete Replacement Guarantee
New Tanks
Each Rhodes tank is built to a proven specification and pressure tested. Whether your tank needs are big or small, we build it all!
Each Rhodes tank is built to a proven specification and pressure tested. Whether your tank needs are big or small, we build it all!
| New (Rhodes) | Design Pressure (oz./in2) | ||
| Nominal Capacity | Pressure, Vacuum | Outside Diameter | Height ft. |
| 7 | 16, 1/2 | 3’2″ | 5’0″ |
| 12 | 16 , 1/2 | 4’2″ | 5’0″ |
| 20 | 16 , 1/2 | 5’4″ | 5’0″ |
| 25 | 16 , 1/2 | 6’0″ | 5’0″ |
| 30 | 16 , 1/2 | 6’6″ | 5’0″ |
| 50 | 16 , 1/2 | 8’6″ | 5’0″ |
| 100 | 16 , 1/2 | 8’6″ | 10’0″ |
| 115 | 16 , 1/2 | 8’6″ | 12’0″ |
| 200 | 16 , 1/2 | 12’0″ | 10’0″ |
| 210 | 16 , 1/2 | 10’0″ | 15’0″ |
| 250 | 16 , 1/2 | 10’0″ | 18’0″ |
| 300 | 16 , 1/2 | 12’0″ | 15’0″ |
| 400 | 16 , 1/2 | 12’0″ | 20’0″ |
| 500 | 16 , 1/2 | 12’0″ | 25’0″ |
| 600 | 16 , 1/2 | 12’0″ | 30’0″ |
12-F
Each tank is fabricated in accordance with API 12F specifications. All tanks are interior and exterior welded to API specifications and pressure tested. Interior coatings are available.
| 12-F | Design Pressure (oz./in2) | ||
| Nominal Capacity | Pressure, Vacuum | Outside Diameter | height ft. |
| 100 | 16 , 1/2 | 9’6″ | 8’0″ |
| 150 | 16 , 1/2 | 9’6″ | 12’0″ |
| 200 | 16 , 1/2 | 12’0″ | 10’0″ |
| 210 | 16 , 1/2 | 10’0″ | 15’0″ |
| 250 | 16 , 1/2 | 11’0″ | 11’0″ |
| 300 | 16 , 1/2 | 12’0″ | 15’0″ |
| 400 | 16 , 1/2 | 12’0″ | 20’0″ |
| 500 | 16 , 1/2 | 12’0″ | 25’0″ |
Used Tanks
- All sizes
Each tank is inspected and repaired using proven and evolving methods and procedures since 1977. All tanks receive New ¼” thick bottoms.
Tank Repair
- All Sizes
We repair customer owned tanks to customer requirements.

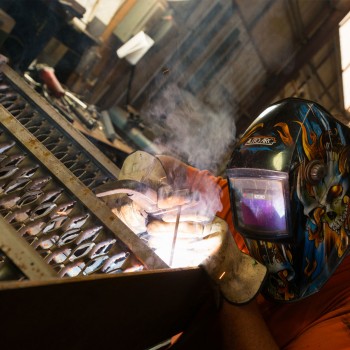

Steps & Walkways
- All applicable to tanks produced at Rhodes plus custom.
Steps and walkways available for all tanks produced at Rhodes. Custom Steps and Walkways available upon request.
